mathglpp::GLMatrix

mathglpp::GLMatrix< T > Class Template Reference

#include <GLMatrix.h>

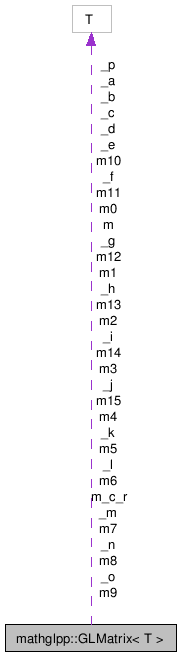

Collaboration diagram for mathglpp::GLMatrix< T >:

Collaboration graph
[legend]
List of all members.

Detailed Description

template<typename T>
class mathglpp::GLMatrix< T >

column major matrix class for OpenGL

Definition at line 35 of file GLMatrix.h.

Public Member Functions

 GLMatrix ()
 Create an uninitialised matrix.
 GLMatrix (const T val)
 Create an initialised matrix.
 GLMatrix (const T *const val)
 Create a matrix from an array*/.
 GLMatrix (const T *const v0, const T *const v1, const T *const v2, const T *const v3)
 Create a matrix from an array*/.
 GLMatrix (const GLMatrix &mat)
 Copy a matrix.
 ~GLMatrix ()
 Default destructor.
const T det () const
 Get the matrix determinant.
GLMatrix adjoint () const
 Get the adjoint matrix.
GLMatrix inverse () const
 Adjoint method inverse, constant time inversion implementation.
GLVector4< T > eigenValues ()
 Return a vector of the eigen values of the matrix.
GLMatrix & operator= (const GLMatrix &mat)
 Assign this matrix from another one.
bool operator== (const GLMatrix &mat)
 Equality check. NB. May not be constant time, depending on memcmp.
T & operator[] (const int ind)
 Direct access to the matrix elements, just remember they are in column major format!!
 operator const T * (void) const
 Implicit cast vector access as suggested by maquinn.
 operator T * (void)
 Implicit cast vector access as suggested by maquinn.
GLMatrix & operator *= (const T &val)
 Multiply this matrix by a scalar.
GLMatrix & operator/= (const T &val)
 Divide this matrix by a scalar.
GLMatrix & operator+= (const GLMatrix &mat)
 Add a matrix to this matrix.
GLMatrix operator+ (const GLMatrix &mat)
 Add a matrix to a copy of this matrix.
GLMatrix & operator-= (const GLMatrix &mat)
 Subtract a matrix from this matrix.
GLMatrix operator- (const GLMatrix &mat)
 Subtract a matrix from a copy of this matrix.
GLMatrix operator * (const GLMatrix &mat)
 Get the matrix dot product, most commonly used form of matrix multiplication.
GLMatrix & operator *= (const GLMatrix &mat)
 Apply the matrix dot product to this matrix.
GLMatrix & mult3by3 (const GLMatrix &mat)
 Apply the matrix dot product to this matrix unrolling by sebastien bloc.
GLVector4< T > operator * (const GLVector4< T > &vec)
 Get the matrix vector dot product, used to transform vertecies.
GLVector3< T > operator * (const GLVector3< T > &vec)
 Get the matrix vector dot product with w = 1, use for transforming non 4D vectors.
GLVector2< T > operator * (const GLVector2< T > &vec)
 Get the matrix vector dot product with w = 1, use for transforming non 4D vectors.
GLVector4< T > operator * (const T *const v_arr)
 Get the matrix vector dot4 product, used to transform vertecies.
GLVector2< T > dot2 (const T *const v_arr) const
 Get the matrix vector dot2 product, used to transform non-4D vertecies.
GLVector2< T > dot2 (const T x, const T y, const T w=1) const
 Get the matrix vector dot2 product, used to transform non-4D vertecies.
void vdot2 (T *const v_arr, const T w=1) const
 Get the matrix vector dot2 product, used to transform non-4D vertecies.
GLVector3< T > dot3 (const T *const v_arr) const
 Get the matrix vector dot3 product, used to transform non-4D vertecies.
GLVector3< T > dot3 (const T x, const T y, const T z, const T w=1) const
 Get the matrix vector dot3 product, used to transform non-4D vertecies.
void vdot3 (T *const v_arr, const T w=1) const
 Get the matrix vector dot3 product, used to transform non-4D vertecies.
GLVector4< T > dot4 (const T *const v_arr) const
 Get the matrix vector dot4 product, used to transform 4D vertecies.
void vdot4 (T *const v_arr) const
 Get the matrix vector dot4 product, used to transform 4D vertecies.
GLVector4< T > dot4 (const T x, const T y, const T z, const T w)
 Get the matrix vector dot4 product, used to transform 4D vertecies.
void glVertex3v (const T *const v_arr)
 Transform the vertex and send it to OpenGL.
void glVertex3 (const T x, const T y, const T z)
 Transform the vertex and send it to OpenGL.
void glVertex4v (const T *const v_arr)
 Transform the vertex and send it to OpenGL.
void glVertex4 (const T x, const T y, const T z, const T w)
 Transform the vertex and send it to OpenGL.
void glVertex3v (const int num, const T *const v_arr)
 Transform a run of vertecies and send them to OpenGL.
void glVertex4v (const int num, const T *const v_arr)
 Transform a run of vertecies and send them to OpenGL.
void glMultMatrix (void)
 GL interface, glMultMatrix.
void glLoadMatrix (void)
 GL interface, glLoadMatrix.
void glGet (const GLenum pname)
 GL interface, glGet, gets a matrix from OpenGL.
GLMatrix & transpose (void)
 Transpose the matrix.
GLMatrix getTranspose (void)
 Return the transpose.
GLMatrix & loadIdentity (void)
 Make this an identity matrix.
GLMatrix & loadZero (void)
 Make this an identity matrix.
GLMatrix & loadRotate (const T angle, T x, T y, T z)
 Make this an OpenGL rotation matrix.
GLMatrix & loadRotateX (const T angle)
 Load rotate[X,Y,Z,XYZ] specialisations by sebastien bloc Make this an OpenGL rotation matrix: same as loadRotate(angle,1,0,0).
GLMatrix & loadRotateY (const T angle)
 Make this an OpenGL rotation matri0: same as loadRotate(angle,0,1,0).
GLMatrix & loadRotateZ (const T angle)
 Make this an OpenGL rotation matrix: same as loadRotateZ(angle,0,0,1).
GLMatrix & applyRotate (const T angle, const T x, const T y, const T z)
 Apply an OpenGL rotation matrix to this.
GLMatrix & applyRotateX (const T angle)
 Apply rotate[X,Y,Z,XYZ] specialisations by sebastien bloc Apply an OpenGL rotation matrix to this.
GLMatrix & applyRotateY (const T angle)
 Apply an OpenGL rotation matrix to this.
GLMatrix & applyRotateZ (const T angle)
 Apply an OpenGL rotation matrix to this.
GLMatrix & applyRotateXYZ (const T x, const T y, const T z)
 Apply an OpenGL rotation matrix to this.
GLMatrix & loadScale (const T x, const T y, const T z)
 Make this an OpenGL scale matrix.
GLMatrix & applyScale (const T x, const T y)
 Apply an OpenGL scale matrix to this.
GLMatrix & applyScale (const T x, const T y, const T z)
 Apply an OpenGL scale matrix to this.
GLMatrix & applyScale (const GLVector2< T > &scale)
 Apply an OpenGL scale matrix to this.
GLMatrix & applyScale (const GLVector3< T > &scale)
 Apply an OpenGL scale matrix to this.
GLMatrix & loadTranslate (const T x, const T y, const T z)
 Make this an OpenGL translate matrix.
GLMatrix & applyTranslate (const T x, const T y)
 Apply an OpenGL translate matrix to this.
GLMatrix & applyTranslate (const T x, const T y, const T z)
 Apply an OpenGL translate matrix to this.
GLMatrix & applyTranslate (const GLVector2< T > &trans)
 Apply an OpenGL translate matrix to this.
GLMatrix & applyTranslate (const GLVector3< T > &trans)
 Apply an OpenGL translate matrix to this.
GLMatrix & loadFrustum (const GLdouble left, const GLdouble right, const GLdouble bottom, const GLdouble top, const GLdouble zNear, const GLdouble zFar)
 Make this with an OpenGL frustum matrix.
GLMatrix & loadOrtho (const GLdouble left, const GLdouble right, const GLdouble bottom, const GLdouble top, const GLdouble zNear, const GLdouble zFar)
 OpenGL orthogonal matrix.
GLMatrix & loadView (const T fx, const T fy, const T fz, const T ux, const T uy, const T uz, const T sx, const T sy, const T sz)
 OpenGL View Matrix.
GLMatrix & loadView (const T *const f, const T *const u, const T *const s)
 OpenGL View Matrix.
GLMatrix & loadView (const GLVector3< T > &front, const GLVector3< T > &up, const GLVector3< T > side)
 OpenGL View Matrix.
template<>
mathglpp::GLMatrix< GLdouble > glTranslate (const GLdouble _x, const GLdouble _y, const GLdouble _z)
template<>
mathglpp::GLMatrix< GLfloat > glTranslate (const GLfloat _x, const GLfloat _y, const GLfloat _z)
template<>
mathglpp::GLMatrix< GLdouble > glRotate (const GLdouble angle, GLdouble x, GLdouble y, GLdouble z)
template<>
mathglpp::GLMatrix< GLfloat > glRotate (const GLfloat angle, GLfloat x, GLfloat y, GLfloat z)
template<>
void glVertex3v (const int num, const GLfloat *const v_arr)
template<>
void glVertex3v (const int num, const GLdouble *const v_arr)
template<>
void glVertex4v (const int num, const GLfloat *const v_arr)
template<>
void glVertex4v (int num, const GLdouble *v_arr)

Static Public Member Functions

static GLMatrix identity (void)
 Special glMatricies Identity matrix.
static GLMatrix zero (void)
 Zero matrix.
static GLMatrix glRotate (const T angle, T x, T y, T z)
 OpenGL rotation matrix.
static GLMatrix glScale (const T x, const T y, const T z)
 OpenGL scale matrix.
static GLMatrix glTranslate (const T x, const T y, const T z)
 OpenGL translate matrix.
static GLMatrix glFrustum (const GLdouble left, const GLdouble right, const GLdouble bottom, const GLdouble top, const GLdouble zNear, const GLdouble zFar)
 OpenGL frustum matrix.
static GLMatrix glOrtho (const GLdouble left, const GLdouble right, const GLdouble bottom, const GLdouble top, const GLdouble zNear, const GLdouble zFar)
 OpenGL orthogonal matrix.

Protected Member Functions

const T cofactorm0 () const
 Cofactor of m0.
const T cofactorm1 () const
 Cofactor of m1.
const T cofactorm2 () const
 Cofactor of m2.
const T cofactorm3 () const
 Cofactor of m3.
const T cofactorm4 () const
 Cofactor of m4.
const T cofactorm5 () const
 Cofactor of m5.
const T cofactorm6 () const
 Cofactor of m6.
const T cofactorm7 () const
 Cofactor of m7.
const T cofactorm8 () const
 Cofactor of m8.
const T cofactorm9 () const
 Cofactor of m9.
const T cofactorm10 () const
 Cofactor of m10.
const T cofactorm11 () const
 Cofactor of m11.
const T cofactorm12 () const
 Cofactor of m12.
const T cofactorm13 () const
 Cofactor of m13.
const T cofactorm14 () const
 Cofactor of m14.
const T cofactorm15 () const
 Cofactor of m15.

Constructor & Destructor Documentation

template<typename T>
mathglpp::GLMatrix< T >::GLMatrix (  )  [inline]

Create an uninitialised matrix.

Definition at line 40 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::getTranspose(), and mathglpp::GLMatrix< value_type >::zero().

00041     { }

template<typename T>
mathglpp::GLMatrix< T >::GLMatrix ( const T  val  )  [inline]

Create an initialised matrix.

Definition at line 44 of file GLMatrix.h.

00045     { m0=m1=m2=m3=m4=m5=m6=m7=m8=m9=m10=m11=m12=m13=m14=m15=val; }

template<typename T>
mathglpp::GLMatrix< T >::GLMatrix ( const T *const   val  )  [inline]

Create a matrix from an array*/.

Definition at line 48 of file GLMatrix.h.

00049     { memmove(m,val,16*sizeof(T)); }

template<typename T>
mathglpp::GLMatrix< T >::GLMatrix ( const T *const   v0,
const T *const   v1,
const T *const   v2,
const T *const   v3
) [inline]

Create a matrix from an array*/.

Definition at line 52 of file GLMatrix.h.

00053     {
00054         memmove(m,v0,4*sizeof(T)); memmove(m+4,v1,4*sizeof(T));
00055         memmove(m+8,v2,4*sizeof(T)); memmove(m+12,v3,4*sizeof(T));
00056     }

template<typename T>
mathglpp::GLMatrix< T >::GLMatrix ( const GLMatrix< T > &  mat  )  [inline]

Copy a matrix.

Definition at line 59 of file GLMatrix.h.

00060     { memmove(m,mat.m,16*sizeof(T)); }

template<typename T>
mathglpp::GLMatrix< T >::~GLMatrix (  )  [inline]

Default destructor.

Definition at line 63 of file GLMatrix.h.

00064     {}

Member Function Documentation

template<typename T>
const T mathglpp::GLMatrix< T >::det (  )  const [inline]

Get the matrix determinant.

Definition at line 67 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::eigenValues().

00068     { return m0 * cofactorm0() - m1 * cofactorm1() + m2 * cofactorm2() - m3 * cofactorm3(); }

template<typename T>
GLMatrix mathglpp::GLMatrix< T >::adjoint (  )  const [inline]

Get the adjoint matrix.

Definition at line 71 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::inverse().

00072     {
00073         GLMatrix ret;
00074         ret[0] = cofactorm0();
00075         ret[1] = -cofactorm4();
00076         ret[2] = cofactorm8();
00077         ret[3] = -cofactorm12();
00078         ret[4] = -cofactorm1();
00079         ret[5] = cofactorm5();
00080         ret[6] = -cofactorm9();
00081         ret[7] = cofactorm13();
00082         ret[8] = cofactorm2();
00083         ret[9] = -cofactorm6();
00084         ret[10] = cofactorm10();
00085         ret[11] = -cofactorm14();
00086         ret[12] = -cofactorm3();
00087         ret[13] = cofactorm7();
00088         ret[14] = -cofactorm11();
00089         ret[15] = cofactorm15();
00090         return ret;
00091     }

template<typename T>
GLMatrix mathglpp::GLMatrix< T >::inverse (  )  const [inline]

Adjoint method inverse, constant time inversion implementation.

Definition at line 94 of file GLMatrix.h.

00095     {
00096         GLMatrix ret(adjoint());
00097         const T determinant = m0 * ret[0] + m1 * ret[4] + m2 * ret[8] + m3 * ret[12];
00098         assert(determinant!=0 && "Singular matrix has no inverse");
00099         ret /= determinant;
00100         return ret;
00101     }

template<typename T>
GLVector4<T> mathglpp::GLMatrix< T >::eigenValues (  )  [inline]

Return a vector of the eigen values of the matrix.

Solve

Definition at line 104 of file GLMatrix.h.

00105     {
00106         LinearPolynomial<T> lpoly(5);
00107         lpoly[0] = det();
00108         lpoly[1] = -_a*_f*_k -_a*_f*_p -_a*_k*_p -_f*_k*_p
00109                     -(-_a -_f)*_l*_o
00110                     -(-_a -_p)*_g*_j
00111                     -(-_a -_k)*_h*_n
00112                     -(-_k -_p)*_b*_e
00113                     -(-_f -_p)*_c*_i
00114                     -(-_f -_k)*_d*_n
00115                     -_g*_l*_n -_h*_g*_o +_b*_g*_i -_b*_h*_m
00116                     -_c*_e*_j -_c*_l*_n +_d*_i*_o;
00117         lpoly[2] = _a*(_f +_k +_p) +_f*(_k +_p) +_k*_p -_l*_o -_g*_j -_h*_n +_b*_e -_c*_i +_d*_n;
00118         lpoly[3] = -_a -_f -_k -_p;
00119         lpoly[4] = 1;
00120
00122         std::vector<T> roots = lpoly.findRoots();
00123
00124         return GLVector4<T>(roots[0], roots[1], roots[2], roots[3]);
00125     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::operator= ( const GLMatrix< T > &  mat  )  [inline]

Assign this matrix from another one.

Definition at line 128 of file GLMatrix.h.

00129     { memmove(m,mat.m,16*sizeof(T)); return *this; }

template<typename T>
bool mathglpp::GLMatrix< T >::operator== ( const GLMatrix< T > &  mat  )  [inline]

Equality check. NB. May not be constant time, depending on memcmp.

Definition at line 132 of file GLMatrix.h.

00133     { return memcmp(m,mat.m,16*sizeof(T))==0;  }

template<typename T>
T& mathglpp::GLMatrix< T >::operator[] ( const int  ind  )  [inline]

Direct access to the matrix elements, just remember they are in column major format!!

Definition at line 136 of file GLMatrix.h.

00137     { assert(ind > -1 && ind < 16); return m[ind]; }

template<typename T>
mathglpp::GLMatrix< T >::operator const T * ( void   )  const [inline]

Implicit cast vector access as suggested by maquinn.

Definition at line 140 of file GLMatrix.h.

00140 { return m; }

template<typename T>
mathglpp::GLMatrix< T >::operator T * ( void   )  [inline]

Implicit cast vector access as suggested by maquinn.

Definition at line 143 of file GLMatrix.h.

00143 { return m; }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::operator *= ( const T &  val  )  [inline]

Multiply this matrix by a scalar.

Definition at line 146 of file GLMatrix.h.

00147     { for(register unsigned i = 0; i < 16; ++i) m[i] *= val; return *this; }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::operator/= ( const T &  val  )  [inline]

Divide this matrix by a scalar.

Definition at line 150 of file GLMatrix.h.

00151     { for(register unsigned i = 0; i < 16; ++i) m[i] /= val; return *this; }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::operator+= ( const GLMatrix< T > &  mat  )  [inline]

Add a matrix to this matrix.

Definition at line 154 of file GLMatrix.h.

00155     { for(register unsigned i = 0; i < 16; ++i) m[i] += mat.m[i]; return *this; }

template<typename T>
GLMatrix mathglpp::GLMatrix< T >::operator+ ( const GLMatrix< T > &  mat  )  [inline]

Add a matrix to a copy of this matrix.

Definition at line 157 of file GLMatrix.h.

00158     { GLMatrix ret(*this); ret += mat; return ret; }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::operator-= ( const GLMatrix< T > &  mat  )  [inline]

Subtract a matrix from this matrix.

Definition at line 161 of file GLMatrix.h.

00162     { for(register unsigned i = 0; i < 16; ++i) m[i] -= mat.m[i]; return *this; }

template<typename T>
GLMatrix mathglpp::GLMatrix< T >::operator- ( const GLMatrix< T > &  mat  )  [inline]

Subtract a matrix from a copy of this matrix.

Definition at line 165 of file GLMatrix.h.

00166     { GLMatrix ret(*this); ret -= mat; return ret; }

template<typename T>
GLMatrix mathglpp::GLMatrix< T >::operator * ( const GLMatrix< T > &  mat  )  [inline]

Get the matrix dot product, most commonly used form of matrix multiplication.

Definition at line 169 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::glVertex4v().

00170     {
00171         GLMatrix ret;
00172         ret.m[0]    = m[0]*mat.m0  + m[0+4]*mat.m1  + m[0+8]*mat.m2  + m[0+12]*mat.m3;
00173         ret.m[1]    = m[1]*mat.m0  + m[1+4]*mat.m1  + m[1+8]*mat.m2  + m[1+12]*mat.m3;
00174         ret.m[2]    = m[2]*mat.m0  + m[2+4]*mat.m1  + m[2+8]*mat.m2  + m[2+12]*mat.m3;
00175         ret.m[3]    = m[3]*mat.m0  + m[3+4]*mat.m1  + m[3+8]*mat.m2  + m[3+12]*mat.m3;
00176         ret.m[0+4]  = m[0]*mat.m4  + m[0+4]*mat.m5  + m[0+8]*mat.m6  + m[0+12]*mat.m7;
00177         ret.m[1+4]  = m[1]*mat.m4  + m[1+4]*mat.m5  + m[1+8]*mat.m6  + m[1+12]*mat.m7;
00178         ret.m[2+4]  = m[2]*mat.m4  + m[2+4]*mat.m5  + m[2+8]*mat.m6  + m[2+12]*mat.m7;
00179         ret.m[3+4]  = m[3]*mat.m4  + m[3+4]*mat.m5  + m[3+8]*mat.m6  + m[3+12]*mat.m7;
00180         ret.m[0+8]  = m[0]*mat.m8  + m[0+4]*mat.m9  + m[0+8]*mat.m10 + m[0+12]*mat.m11;
00181         ret.m[1+8]  = m[1]*mat.m8  + m[1+4]*mat.m9  + m[1+8]*mat.m10 + m[1+12]*mat.m11;
00182         ret.m[2+8]  = m[2]*mat.m8  + m[2+4]*mat.m9  + m[2+8]*mat.m10 + m[2+12]*mat.m11;
00183         ret.m[3+8]  = m[3]*mat.m8  + m[3+4]*mat.m9  + m[3+8]*mat.m10 + m[3+12]*mat.m11;
00184         ret.m[0+12] = m[0]*mat.m12 + m[0+4]*mat.m13 + m[0+8]*mat.m14 + m[0+12]*mat.m15;
00185         ret.m[1+12] = m[1]*mat.m12 + m[1+4]*mat.m13 + m[1+8]*mat.m14 + m[1+12]*mat.m15;
00186         ret.m[2+12] = m[2]*mat.m12 + m[2+4]*mat.m13 + m[2+8]*mat.m14 + m[2+12]*mat.m15;
00187         ret.m[3+12] = m[3]*mat.m12 + m[3+4]*mat.m13 + m[3+8]*mat.m14 + m[3+12]*mat.m15;
00188         return ret;
00189     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::operator *= ( const GLMatrix< T > &  mat  )  [inline]

Apply the matrix dot product to this matrix.

Definition at line 192 of file GLMatrix.h.

00193     {
00194         GLMatrix temp(*this);
00195         m[0]    = temp.m[0]*mat.m0  + temp.m[0+4]*mat.m1  + temp.m[0+8]*mat.m2  + temp.m[0+12]*mat.m3;
00196         m[1]    = temp.m[1]*mat.m0  + temp.m[1+4]*mat.m1  + temp.m[1+8]*mat.m2  + temp.m[1+12]*mat.m3;
00197         m[2]    = temp.m[2]*mat.m0  + temp.m[2+4]*mat.m1  + temp.m[2+8]*mat.m2  + temp.m[2+12]*mat.m3;
00198         m[3]    = temp.m[3]*mat.m0  + temp.m[3+4]*mat.m1  + temp.m[3+8]*mat.m2  + temp.m[3+12]*mat.m3;
00199         m[0+4]  = temp.m[0]*mat.m4  + temp.m[0+4]*mat.m5  + temp.m[0+8]*mat.m6  + temp.m[0+12]*mat.m7;
00200         m[1+4]  = temp.m[1]*mat.m4  + temp.m[1+4]*mat.m5  + temp.m[1+8]*mat.m6  + temp.m[1+12]*mat.m7;
00201         m[2+4]  = temp.m[2]*mat.m4  + temp.m[2+4]*mat.m5  + temp.m[2+8]*mat.m6  + temp.m[2+12]*mat.m7;
00202         m[3+4]  = temp.m[3]*mat.m4  + temp.m[3+4]*mat.m5  + temp.m[3+8]*mat.m6  + temp.m[3+12]*mat.m7;
00203         m[0+8]  = temp.m[0]*mat.m8  + temp.m[0+4]*mat.m9  + temp.m[0+8]*mat.m10 + temp.m[0+12]*mat.m11;
00204         m[1+8]  = temp.m[1]*mat.m8  + temp.m[1+4]*mat.m9  + temp.m[1+8]*mat.m10 + temp.m[1+12]*mat.m11;
00205         m[2+8]  = temp.m[2]*mat.m8  + temp.m[2+4]*mat.m9  + temp.m[2+8]*mat.m10 + temp.m[2+12]*mat.m11;
00206         m[3+8]  = temp.m[3]*mat.m8  + temp.m[3+4]*mat.m9  + temp.m[3+8]*mat.m10 + temp.m[3+12]*mat.m11;
00207         m[0+12] = temp.m[0]*mat.m12 + temp.m[0+4]*mat.m13 + temp.m[0+8]*mat.m14 + temp.m[0+12]*mat.m15;
00208         m[1+12] = temp.m[1]*mat.m12 + temp.m[1+4]*mat.m13 + temp.m[1+8]*mat.m14 + temp.m[1+12]*mat.m15;
00209         m[2+12] = temp.m[2]*mat.m12 + temp.m[2+4]*mat.m13 + temp.m[2+8]*mat.m14 + temp.m[2+12]*mat.m15;
00210         m[3+12] = temp.m[3]*mat.m12 + temp.m[3+4]*mat.m13 + temp.m[3+8]*mat.m14 + temp.m[3+12]*mat.m15;
00211         return *this;
00212     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::mult3by3 ( const GLMatrix< T > &  mat  )  [inline]

Apply the matrix dot product to this matrix unrolling by sebastien bloc.

Definition at line 216 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::applyRotate(), mathglpp::GLMatrix< value_type >::applyRotateX(), mathglpp::GLMatrix< value_type >::applyRotateXYZ(), mathglpp::GLMatrix< value_type >::applyRotateY(), and mathglpp::GLMatrix< value_type >::applyRotateZ().

00217     {
00218         GLMatrix temp(*this);
00219         m0 = temp.m0*mat.m0+temp.m4*mat.m1+temp.m8*mat.m2;
00220         m4 = temp.m0*mat.m4+temp.m4*mat.m5+temp.m8*mat.m6;
00221         m8 = temp.m0*mat.m8+temp.m4*mat.m9+temp.m8*mat.m10;
00222         m1 = temp.m1*mat.m0+temp.m5*mat.m1+temp.m9*mat.m2;
00223         m5 = temp.m1*mat.m4+temp.m5*mat.m5+temp.m9*mat.m6;
00224         m9 = temp.m1*mat.m8+temp.m5*mat.m9+temp.m9*mat.m10;
00225         m2 = temp.m2*mat.m0+temp.m6*mat.m1+temp.m10*mat.m2;
00226         m6 = temp.m2*mat.m4+temp.m6*mat.m5+temp.m10*mat.m6;
00227         m10 = temp.m2*mat.m8+temp.m6*mat.m9+temp.m10*mat.m10;
00228         m3 = temp.m3*mat.m0+temp.m7*mat.m1+temp.m11*mat.m2;
00229         m7 = temp.m3*mat.m4+temp.m7*mat.m5+temp.m11*mat.m6;
00230         m11 = temp.m3*mat.m8+temp.m7*mat.m9+temp.m11*mat.m10;
00231         return *this;
00232     }

template<typename T>
GLVector4<T> mathglpp::GLMatrix< T >::operator * ( const GLVector4< T > &  vec  )  [inline]

Get the matrix vector dot product, used to transform vertecies.

Definition at line 235 of file GLMatrix.h.

00236     {
00237         GLVector4<T> ret;
00238         ret.val[0] = vec.x * m[0] + vec.y * m[0+4] + vec.z * m[0+8] + vec.w * m[0+12];
00239         ret.val[1] = vec.x * m[1] + vec.y * m[1+4] + vec.z * m[1+8] + vec.w * m[1+12];
00240         ret.val[2] = vec.x * m[2] + vec.y * m[2+4] + vec.z * m[2+8] + vec.w * m[2+12];
00241         ret.val[3] = vec.x * m[3] + vec.y * m[3+4] + vec.z * m[3+8] + vec.w * m[3+12];
00242         return ret;
00243     }

template<typename T>
GLVector3<T> mathglpp::GLMatrix< T >::operator * ( const GLVector3< T > &  vec  )  [inline]

Get the matrix vector dot product with w = 1, use for transforming non 4D vectors.

Definition at line 246 of file GLMatrix.h.

00247     {
00248         GLVector3<T> ret;
00249         //scale translate and rotate disregarding w scaling
00250         ret[0] = vec[0] * m[0] + vec[1] * m[0+4] + vec[2] * m[0+8] + m[0+12];
00251         ret[1] = vec[0] * m[1] + vec[1] * m[1+4] + vec[2] * m[1+8] + m[1+12];
00252         ret[2] = vec[0] * m[2] + vec[1] * m[2+4] + vec[2] * m[2+8] + m[2+12];
00253         //do w scaling
00254         register T resip = 1 / (vec[0]*m[3] + vec[1]*m[3+4] + vec[2]*m[3+8] + m[3+12]);
00255         ret[0] *= resip;
00256         ret[1] *= resip;
00257         ret[2] *= resip;
00258         return ret;
00259     }

template<typename T>
GLVector2<T> mathglpp::GLMatrix< T >::operator * ( const GLVector2< T > &  vec  )  [inline]

Get the matrix vector dot product with w = 1, use for transforming non 4D vectors.

Definition at line 262 of file GLMatrix.h.

00263     {
00264         GLVector2<T> ret;
00265         ret[0] = vec[0]*m[0] + vec[1]*m[0+4] + m[0+12];
00266         ret[1] = vec[0]*m[1] + vec[1]*m[1+4] + m[1+12];
00267         //scale translate and rotate disregarding w scaling
00268         //do w scaling
00269         register T resip = 1/(vec[0]*m[3] + vec[1]*m[3+4] + m[3+12]);
00270         ret[0] *= resip;
00271         ret[1] *= resip;
00272         return ret;
00273     }

template<typename T>
GLVector4<T> mathglpp::GLMatrix< T >::operator * ( const T *const   v_arr  )  [inline]

Get the matrix vector dot4 product, used to transform vertecies.

Definition at line 276 of file GLMatrix.h.

00277     {
00278         GLVector4<T> ret;
00279         ret.val[0] = v_arr[0]*m[0] + v_arr[1]*m[0+4] + v_arr[2]*m[0+8] + v_arr[3]*m[0+12];
00280         ret.val[1] = v_arr[0]*m[1] + v_arr[1]*m[1+4] + v_arr[2]*m[1+8] + v_arr[3]*m[1+12];
00281         ret.val[2] = v_arr[0]*m[2] + v_arr[1]*m[2+4] + v_arr[2]*m[2+8] + v_arr[3]*m[2+12];
00282         ret.val[3] = v_arr[0]*m[3] + v_arr[1]*m[3+4] + v_arr[2]*m[3+8] + v_arr[3]*m[3+12];
00283         return ret;
00284     }

template<typename T>
GLVector2<T> mathglpp::GLMatrix< T >::dot2 ( const T *const   v_arr  )  const [inline]

Get the matrix vector dot2 product, used to transform non-4D vertecies.

Definition at line 287 of file GLMatrix.h.

00288     {
00289         GLVector2<T> ret;
00290         ret[0] = v_arr[0]*m[0] + v_arr[1]*m[0+4] + m[0+12];
00291         ret[1] = v_arr[0]*m[1] + v_arr[1]*m[1+4] + m[1+12];
00292         //scale translate and rotate disregarding w scaling
00293         //do w scaling
00294         register T resip = 1/(v_arr[0]*m[3] + v_arr[1]*m[3+4] + m[3+12]);
00295         ret[0] *= resip;
00296         ret[1] *= resip;
00297         return ret;
00298     }

template<typename T>
GLVector2<T> mathglpp::GLMatrix< T >::dot2 ( const T  x,
const T  y,
const T  w = 1
) const [inline]

Get the matrix vector dot2 product, used to transform non-4D vertecies.

W scale

Definition at line 301 of file GLMatrix.h.

00302     {
00303         GLVector2<T> ret;
00304         ret[0] = x*m[0] + y*m[0+4] + w*m[0+12];
00305         ret[0] = x*m[0] + y*m[1+4] + w*m[1+12];
00307         T resip = 1/(x*m[3] + y*m[3+4] + w*m[3+12]);
00308         ret[0] *= resip;
00309         ret[1] *= resip;
00310         return ret;
00311     }

template<typename T>
void mathglpp::GLMatrix< T >::vdot2 ( T *const  v_arr,
const T  w = 1
) const [inline]

Get the matrix vector dot2 product, used to transform non-4D vertecies.

W scale

Definition at line 314 of file GLMatrix.h.

00315     {
00316         const T x = v_arr[0];
00317         const T y = v_arr[1];
00318         v_arr[0] = x * m[0] + y * m[0+4] + w * m[0+12];
00319         v_arr[1] = x * m[1] + y * m[1+4] + w * m[1+12];
00321         T resip = 1 / (x * m[3] + y * m[3+4] + w * m[3+12]);
00322         v_arr[0] *= resip;
00323         v_arr[1] *= resip;
00324     }

template<typename T>
GLVector3<T> mathglpp::GLMatrix< T >::dot3 ( const T *const   v_arr  )  const [inline]

Get the matrix vector dot3 product, used to transform non-4D vertecies.

Definition at line 327 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::glVertex3(), and mathglpp::GLMatrix< value_type >::glVertex3v().

00328     {
00329         GLVector3<T> ret;
00330         //scale translate and rotate disregarding w scaling
00331         ret[0] = v_arr[0]*m[0] + v_arr[1]*m[0+4] + v_arr[2]*m[0+8] + m[0+12];
00332         ret[1] = v_arr[0]*m[1] + v_arr[1]*m[1+4] + v_arr[2]*m[1+8] + m[1+12];
00333         ret[2] = v_arr[0]*m[2] + v_arr[1]*m[2+4] + v_arr[2]*m[2+8] + m[2+12];
00334         //do w scaling
00335         register T resip = 1/(v_arr[0]*m[3] + v_arr[1]*m[3+4] + v_arr[2]*m[3+8] + m[3+12]);
00336         ret[0] *= resip;
00337         ret[1] *= resip;
00338         ret[2] *= resip;
00339         return ret;
00340     }

template<typename T>
GLVector3<T> mathglpp::GLMatrix< T >::dot3 ( const T  x,
const T  y,
const T  z,
const T  w = 1
) const [inline]

Get the matrix vector dot3 product, used to transform non-4D vertecies.

W scale

Definition at line 343 of file GLMatrix.h.

00344     {
00345         GLVector3<T> ret;
00346         ret[0] = x * m[0] + y * m[0 + 4] + z * m[0 + 8] + w * m[0 + 12];
00347         ret[1] = x * m[1] + y * m[1 + 4] + z * m[1 + 8] + w * m[1 + 12];
00348         ret[1] = x * m[2] + y * m[2 + 4] + z * m[2 + 8] + w * m[2 + 12];
00350         const T resip = 1 / (x * m[3] + y * m[3 + 4] + z * m[3 + 8] + w * m[3 + 12]);
00351         ret[0] *= resip;
00352         ret[1] *= resip;
00353         ret[2] *= resip;
00354         return ret;
00355     }

template<typename T>
void mathglpp::GLMatrix< T >::vdot3 ( T *const  v_arr,
const T  w = 1
) const [inline]

Get the matrix vector dot3 product, used to transform non-4D vertecies.

W scale

Definition at line 358 of file GLMatrix.h.

00359     {
00360         const T x = v_arr[0];
00361         const T y = v_arr[1];
00362         const T z = v_arr[2];
00363
00364         v_arr[0] = x * m[0] + y * m[0 + 4] + z * m[0 + 8] + w * m[0 + 12];
00365         v_arr[1] = x * m[1] + y * m[1 + 4] + z * m[1 + 8] + w * m[1 + 12];
00366         v_arr[2] = x * m[2] + y * m[2 + 4] + z * m[2 + 8] + w * m[2 + 12];
00368         const T resip = 1 / (x * m[3] + y * m[3 + 4] + z * m[3 + 8] + w * m[3 + 12]);
00369         v_arr[0] *= resip;
00370         v_arr[1] *= resip;
00371         v_arr[2] *= resip;
00372     }

template<typename T>
GLVector4<T> mathglpp::GLMatrix< T >::dot4 ( const T *const   v_arr  )  const [inline]

Get the matrix vector dot4 product, used to transform 4D vertecies.

Definition at line 375 of file GLMatrix.h.

Referenced by mathglpp::GLCubicHermiteCurve4< T >::glVertex(), mathglpp::GLMatrix< value_type >::glVertex4(), mathglpp::GLCubicHermiteCurve4< T >::interpolate(), and mathglpp::GLCubicHermiteCurve4< T >::operator()().

00376     {
00377         GLVector4<T> ret;
00378         const T x = v_arr[0];
00379         const T y = v_arr[1];
00380         const T z = v_arr[2];
00381         const T w = v_arr[3];
00382
00383         //scale translate and rotate disregarding w scaling
00384         ret[0] = x * m[0] + y * m[0 + 4] + z * m[0 + 8] + w * m[0 + 12];
00385         ret[1] = x * m[1] + y * m[1 + 4] + z * m[1 + 8] + w * m[1 + 12];
00386         ret[2] = x * m[2] + y * m[2 + 4] + z * m[2 + 8] + w * m[2 + 12];
00387         ret[3] = x * m[3] + y * m[3 + 4] + z * m[3 + 8] + w * m[3 + 12];
00388         return ret;
00389     }

template<typename T>
void mathglpp::GLMatrix< T >::vdot4 ( T *const  v_arr  )  const [inline]

Get the matrix vector dot4 product, used to transform 4D vertecies.

Definition at line 392 of file GLMatrix.h.

Referenced by mathglpp::GLCubicHermiteCurve4< T >::interpolate(), mathglpp::CubicBezierCurve4< T >::interpolate(), and mathglpp::GLCubicHermiteCurve4< T >::operator()().

00393     {
00394         const T x = v_arr[0];
00395         const T y = v_arr[1];
00396         const T z = v_arr[2];
00397         const T w = v_arr[3];
00398         v_arr[0] = x * m[0] + y * m[0 + 4] + z * m[0 + 8] + w * m[0 + 12];
00399         v_arr[1] = x * m[1] + y * m[1 + 4] + z * m[1 + 8] + w * m[1 + 12];
00400         v_arr[2] = x * m[2] + y * m[2 + 4] + z * m[2 + 8] + w * m[2 + 12];
00401         v_arr[3] = x * m[3] + y * m[3 + 4] + z * m[3 + 8] + w * m[3 + 12];
00402     }

template<typename T>
GLVector4<T> mathglpp::GLMatrix< T >::dot4 ( const T  x,
const T  y,
const T  z,
const T  w
) [inline]

Get the matrix vector dot4 product, used to transform 4D vertecies.

Definition at line 405 of file GLMatrix.h.

00406     {
00407         GLVector4<T> ret;
00408         ret.val[0] = x * m[0] + y * m[0+4] + z * m[0+8] + w * m[0+12];
00409         ret.val[1] = x * m[1] + y * m[1+4] + z * m[1+8] + w * m[1+12];
00410         ret.val[2] = x * m[2] + y * m[2+4] + z * m[2+8] + w * m[2+12];
00411         ret.val[3] = x * m[3] + y * m[3+4] + z * m[3+8] + w * m[3+12];
00412         return ret;
00413     }

template<typename T>
void mathglpp::GLMatrix< T >::glVertex3v ( const T *const   v_arr  )  [inline]

Transform the vertex and send it to OpenGL.

Definition at line 416 of file GLMatrix.h.

00417     {
00418         (this->dot3(v_arr)).glVertex();
00419     }

template<typename T>
void mathglpp::GLMatrix< T >::glVertex3 ( const T  x,
const T  y,
const T  z
) [inline]

Transform the vertex and send it to OpenGL.

Definition at line 422 of file GLMatrix.h.

00423     {
00424         (this->dot3(x,y,z)).glVertex();
00425     }

template<typename T>
void mathglpp::GLMatrix< T >::glVertex4v ( const T *const   v_arr  )  [inline]

Transform the vertex and send it to OpenGL.

Definition at line 428 of file GLMatrix.h.

00429     {
00430         (this->operator *(v_arr)).glVertex();
00431     }

template<typename T>
void mathglpp::GLMatrix< T >::glVertex4 ( const T  x,
const T  y,
const T  z,
const T  w
) [inline]

Transform the vertex and send it to OpenGL.

Definition at line 434 of file GLMatrix.h.

00435     {
00436         (this->dot4(x,y,z,w)).glVertex();
00437     }

template<typename T>
void mathglpp::GLMatrix< T >::glVertex3v ( const int  num,
const T *const   v_arr
)

Transform a run of vertecies and send them to OpenGL.

template<typename T>
void mathglpp::GLMatrix< T >::glVertex4v ( const int  num,
const T *const   v_arr
)

Transform a run of vertecies and send them to OpenGL.

template<typename T>
void mathglpp::GLMatrix< T >::glMultMatrix ( void   )  [inline]

GL interface, glMultMatrix.

Definition at line 446 of file GLMatrix.h.

00446 { mathglpp::glMultMatrix<T>(m); };

template<typename T>
void mathglpp::GLMatrix< T >::glLoadMatrix ( void   )  [inline]

GL interface, glLoadMatrix.

Definition at line 448 of file GLMatrix.h.

00448 { mathglpp::glLoadMatrix<T>(m); };

template<typename T>
void mathglpp::GLMatrix< T >::glGet ( const GLenum  pname  )  [inline]

GL interface, glGet, gets a matrix from OpenGL.

Definition at line 450 of file GLMatrix.h.

00450 { mathglpp::glGet<T>(pname,m); };

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::transpose ( void   )  [inline]

Transpose the matrix.

Definition at line 453 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::getTranspose().

00454     {
00455         swap(m1,m4); swap(m2,m8); swap(m3,m12);
00456         swap(m6,m9); swap(m7,m13); swap(m11,m14);
00457
00458         return *this;
00459     }

template<typename T>
GLMatrix mathglpp::GLMatrix< T >::getTranspose ( void   )  [inline]

Return the transpose.

Definition at line 462 of file GLMatrix.h.

00463     {
00464         return (GLMatrix(this).transpose());
00465     }

template<typename T>
static GLMatrix mathglpp::GLMatrix< T >::identity ( void   )  [inline, static]

Special glMatricies Identity matrix.

Definition at line 469 of file GLMatrix.h.

00470     {
00471         GLMatrix ret;
00472
00473         ret.m0 = 1;   ret.m4 = 0;   ret.m8  = 0;  ret.m12 = 0;
00474         ret.m1 = 0;   ret.m5 = 1;   ret.m9  = 0;  ret.m13 = 0;
00475         ret.m2 = 0;   ret.m6 = 0;   ret.m10 = 1;  ret.m14 = 0;
00476         ret.m3 = 0;   ret.m7 = 0;   ret.m11 = 0;  ret.m15 = 1;
00477
00478         return ret;
00479     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::loadIdentity ( void   )  [inline]

Make this an identity matrix.

Definition at line 482 of file GLMatrix.h.

00483     {
00484         m0 = 1;   m4 = 0;   m8  = 0;  m12 = 0;
00485         m1 = 0;   m5 = 1;   m9  = 0;  m13 = 0;
00486         m2 = 0;   m6 = 0;   m10 = 1;  m14 = 0;
00487         m3 = 0;   m7 = 0;   m11 = 0;  m15 = 1;
00488
00489         return *this;
00490     }

template<typename T>
static GLMatrix mathglpp::GLMatrix< T >::zero ( void   )  [inline, static]

Zero matrix.

Definition at line 493 of file GLMatrix.h.

00494     {
00495         return GLMatrix(T(0));
00496     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::loadZero ( void   )  [inline]

Make this an identity matrix.

Definition at line 499 of file GLMatrix.h.

00500     {
00501         m0 = 0;   m4 = 0;   m8  = 0;  m12 = 0;
00502         m1 = 0;   m5 = 0;   m9  = 0;  m13 = 0;
00503         m2 = 0;   m6 = 0;   m10 = 0;  m14 = 0;
00504         m3 = 0;   m7 = 0;   m11 = 0;  m15 = 0;
00505
00506         return *this;
00507     }

template<typename T>
static GLMatrix mathglpp::GLMatrix< T >::glRotate ( const T  angle,
T  x,
T  y,
T  z
) [static]

OpenGL rotation matrix.

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::loadRotate ( const T  angle,
T  x,
T  y,
T  z
) [inline]

Make this an OpenGL rotation matrix.

Definition at line 513 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::applyRotate().

00514     {
00515         register T magSqr = x*x + y*y + z*z;
00516         if(magSqr != 1.0)
00517         {
00518             const T mag = sqrt(magSqr);
00519             x /= mag;
00520             y /= mag;
00521             z /= mag;
00522         }
00523         const T c = T(cos(angle * M_PI / 180));
00524         const T s = T(sin(angle * M_PI / 180));
00525         m0 = x*x*(1-c)+c;
00526         m1 = y*x*(1-c)+z*s;
00527         m2 = z*x*(1-c)-y*s;
00528         m3 = 0;
00529
00530         m4 = x*y*(1-c)-z*s;
00531         m5 = y*y*(1-c)+c;
00532         m6 = z*y*(1-c)+x*s;
00533         m7 = 0;
00534
00535         m8 = x*z*(1-c)+y*s;
00536         m9 = y*z*(1-c)-x*s;
00537         m10 = z*z*(1-c)+c;
00538         m11 = 0;
00539
00540         m12 = 0;
00541         m13 = 0;
00542         m14 = 0;
00543         m15 = 1;
00544
00545         return *this;
00546     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::loadRotateX ( const T  angle  )  [inline]

Load rotate[X,Y,Z,XYZ] specialisations by sebastien bloc Make this an OpenGL rotation matrix: same as loadRotate(angle,1,0,0).

Definition at line 550 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::applyRotateX(), and mathglpp::GLMatrix< value_type >::applyRotateXYZ().

00551     {
00552         const T c = T(cos(angle * M_PI / 180));
00553         const T s = T(sin(angle * M_PI / 180));
00554         m0 = 1;
00555         m1 = 0;
00556         m2 = 0;
00557         m3 = 0;
00558
00559         m4 = 0;
00560         m5 = c;
00561         m6 = s;
00562         m7 = 0;
00563
00564         m8 = 0;
00565         m9 = -s;
00566         m10 = c;
00567         m11 = 0;
00568
00569         m12 = 0;
00570         m13 = 0;
00571         m14 = 0;
00572         m15 = 1;
00573
00574         return *this;
00575     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::loadRotateY ( const T  angle  )  [inline]

Make this an OpenGL rotation matri0: same as loadRotate(angle,0,1,0).

Definition at line 578 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::applyRotateXYZ(), and mathglpp::GLMatrix< value_type >::applyRotateY().

00579     {
00580         const T c = T(cos(angle * M_PI / 180));
00581         const T s = T(sin(angle * M_PI / 180));
00582         m0 = c;
00583         m1 = 0;
00584         m2 = -s;
00585         m3 = 0;
00586
00587         m4 = 0;
00588         m5 = 1;
00589         m6 = 0;
00590         m7 = 0;
00591
00592         m8 = s;
00593         m9 = 0;
00594         m10 = c;
00595         m11 = 0;
00596
00597         m12 = 0;
00598         m13 = 0;
00599         m14 = 0;
00600         m15 = 1;
00601
00602         return *this;
00603     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::loadRotateZ ( const T  angle  )  [inline]

Make this an OpenGL rotation matrix: same as loadRotateZ(angle,0,0,1).

Definition at line 606 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::applyRotateXYZ(), and mathglpp::GLMatrix< value_type >::applyRotateZ().

00607     {
00608         const T c = T(cos(angle * M_PI / 180));
00609         const T s = T(sin(angle * M_PI / 180));
00610         m0 = c;
00611         m1 = s;
00612         m2 = 0;
00613         m3 = 0;
00614
00615         m4 = -s;
00616         m5 = c;
00617         m6 = 0;
00618         m7 = 0;
00619
00620         m8 = 0;
00621         m9 = 0;
00622         m10 = 1;
00623         m11 = 0;
00624
00625         m12 = 0;
00626         m13 = 0;
00627         m14 = 0;
00628         m15 = 1;
00629
00630         return *this;
00631     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::applyRotate ( const T  angle,
const T  x,
const T  y,
const T  z
) [inline]

Apply an OpenGL rotation matrix to this.

Definition at line 634 of file GLMatrix.h.

00635     {
00636         static GLMatrix temp;
00637         temp.loadRotate(angle, x, y, z);
00638         return mult3by3(temp);
00639     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::applyRotateX ( const T  angle  )  [inline]

Apply rotate[X,Y,Z,XYZ] specialisations by sebastien bloc Apply an OpenGL rotation matrix to this.

Definition at line 643 of file GLMatrix.h.

00644     {
00645         static GLMatrix temp;
00646         temp.loadRotateX(angle);
00647         return mult3by3(temp);
00648     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::applyRotateY ( const T  angle  )  [inline]

Apply an OpenGL rotation matrix to this.

Definition at line 651 of file GLMatrix.h.

00652     {
00653         static GLMatrix temp;
00654         temp.loadRotateY(angle);
00655         return mult3by3(temp);
00656     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::applyRotateZ ( const T  angle  )  [inline]

Apply an OpenGL rotation matrix to this.

Definition at line 659 of file GLMatrix.h.

00660     {
00661         static GLMatrix temp;
00662         temp.loadRotateZ(angle);
00663         return mult3by3(temp);
00664     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::applyRotateXYZ ( const T  x,
const T  y,
const T  z
) [inline]

Apply an OpenGL rotation matrix to this.

Definition at line 667 of file GLMatrix.h.

00668     {
00669         static GLMatrix temp;
00670         temp.loadRotateX(x);
00671         mult3by3(temp);
00672         temp.loadRotateY(y);
00673         mult3by3(temp);
00674         temp.loadRotateZ(z);
00675         return mult3by3(temp);
00676     }

template<typename T>
static GLMatrix mathglpp::GLMatrix< T >::glScale ( const T  x,
const T  y,
const T  z
) [inline, static]

OpenGL scale matrix.

Definition at line 679 of file GLMatrix.h.

00680     {
00681         GLMatrix ret;
00682         ret.m0 = x;     ret.m4 = 0;     ret.m8 = 0;     ret.m12 = 0;
00683         ret.m1 = 0;     ret.m5 = y;     ret.m9 = 0;     ret.m13 = 0;
00684         ret.m2 = 0;     ret.m6 = 0;     ret.m10 = z;    ret.m14 = 0;
00685         ret.m3 = 0;     ret.m7 = 0;     ret.m11 = 0;    ret.m15 = 1;
00686         return ret;
00687     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::loadScale ( const T  x,
const T  y,
const T  z
) [inline]

Make this an OpenGL scale matrix.

Definition at line 690 of file GLMatrix.h.

00691     {
00692         m0 = x;   m4 = 0;   m8  = 0;  m12 = 0;
00693         m1 = 0;   m5 = y;   m9  = 0;  m13 = 0;
00694         m2 = 0;   m6 = 0;   m10 = z;  m14 = 0;
00695         m3 = 0;   m7 = 0;   m11 = 0;  m15 = 1;
00696         return *this;
00697     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::applyScale ( const T  x,
const T  y
) [inline]

Apply an OpenGL scale matrix to this.

Definition at line 700 of file GLMatrix.h.

00701     {
00702         /*improved version*/
00703         //assuming z = 1
00704         m0 *= x;    m1 *= x;    m2 *= x;    m3 *= x;
00705         m4 *= y;    m5 *= y;    m6 *= y;    m7 *= y;
00706         return *this;
00707     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::applyScale ( const T  x,
const T  y,
const T  z
) [inline]

Apply an OpenGL scale matrix to this.

Definition at line 710 of file GLMatrix.h.

00711     {
00712         /*improved version*/
00713         m0 *= x;    m1 *= x;    m2 *= x;    m3 *= x;
00714         m4 *= y;    m5 *= y;    m6 *= y;    m7 *= y;
00715         m8 *= z;    m9 *= z;    m10 *= z;   m11 *= z;
00716         return *this;
00717     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::applyScale ( const GLVector2< T > &  scale  )  [inline]

Apply an OpenGL scale matrix to this.

Definition at line 720 of file GLMatrix.h.

00721     {
00722         /*improved version*/
00723         //Assuming z = 1
00724         m0 *= scale.x;    m1 *= scale.x;    m2 *= scale.x;    m3 *= scale.x;
00725         m4 *= scale.y;    m5 *= scale.y;    m6 *= scale.y;    m7 *= scale.y;
00726         return *this;
00727     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::applyScale ( const GLVector3< T > &  scale  )  [inline]

Apply an OpenGL scale matrix to this.

Definition at line 730 of file GLMatrix.h.

00731     {
00732         /*improved version*/
00733         m0 *= scale.x;    m1 *= scale.x;    m2 *= scale.x;    m3 *= scale.x;
00734         m4 *= scale.y;    m5 *= scale.y;    m6 *= scale.y;    m7 *= scale.y;
00735         m8 *= scale.z;    m9 *= scale.z;    m10 *= scale.z;   m11 *= scale.z;
00736         return *this;
00737     }

template<typename T>
static GLMatrix mathglpp::GLMatrix< T >::glTranslate ( const T  x,
const T  y,
const T  z
) [static]

OpenGL translate matrix.

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::loadTranslate ( const T  x,
const T  y,
const T  z
) [inline]

Make this an OpenGL translate matrix.

Definition at line 743 of file GLMatrix.h.

00744     {
00745         m0 = 1;   m4 = 0;   m8  = 0;  m12 = x;
00746         m1 = 0;   m5 = 1;   m9  = 0;  m13 = y;
00747         m2 = 0;   m6 = 0;   m10 = 1;  m14 = z;
00748         m3 = 0;   m7 = 0;   m11 = 0;  m15 = 1;
00749         return *this;
00750     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::applyTranslate ( const T  x,
const T  y
) [inline]

Apply an OpenGL translate matrix to this.

Definition at line 753 of file GLMatrix.h.

00754     {
00755         /*improved version*/
00756         //assuming z = 0
00757         m12 += m0*x + m4*y;
00758         m13 += m1*x + m5*y;
00759         m14 += m2*x + m6*y;
00760         return *this;
00761     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::applyTranslate ( const T  x,
const T  y,
const T  z
) [inline]

Apply an OpenGL translate matrix to this.

Definition at line 764 of file GLMatrix.h.

00765     {
00766         /*improved version*/
00767         m12 += m0*x + m4*y + m8*z;
00768         m13 += m1*x + m5*y + m9*z;
00769         m14 += m2*x + m6*y + m10*z;
00770         return *this;
00771     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::applyTranslate ( const GLVector2< T > &  trans  )  [inline]

Apply an OpenGL translate matrix to this.

Definition at line 774 of file GLMatrix.h.

00775     {
00776         /*improved version*/
00777         //assuming z = 0
00778         m12 += m0 * trans.x + m4 * trans.y;
00779         m13 += m1 * trans.x + m5 * trans.y;
00780         m14 += m2 * trans.x + m6 * trans.y;
00781         return *this;
00782     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::applyTranslate ( const GLVector3< T > &  trans  )  [inline]

Apply an OpenGL translate matrix to this.

Definition at line 785 of file GLMatrix.h.

00786     {
00787         /*improved version*/
00788         m12 += m0 * trans.x + m4 * trans.y + m8 * trans.z;
00789         m13 += m1 * trans.x + m5 * trans.y + m9 * trans.z;
00790         m14 += m2 * trans.x + m6 * trans.y + m10 * trans.z;
00791         return *this;
00792     }

template<typename T>
static GLMatrix mathglpp::GLMatrix< T >::glFrustum ( const GLdouble  left,
const GLdouble  right,
const GLdouble  bottom,
const GLdouble  top,
const GLdouble  zNear,
const GLdouble  zFar
) [inline, static]

OpenGL frustum matrix.

Definition at line 796 of file GLMatrix.h.

00799     {
00800         GLMatrix ret;
00801         ret.m0 = T(2 * zNear / (right - left));
00802         ret.m1 = 0;
00803         ret.m2 = 0;
00804         ret.m3 = 0;
00805
00806         ret.m4 = 0;
00807         ret.m5 = T(2 * zNear / (top - bottom));
00808         ret.m6 = 0;
00809         ret.m7 = 0;
00810
00811         ret.m8 = T((right + left) / (right - left));
00812         ret.m9 = T((top + bottom) / (top - bottom));
00813         ret.m10 = -T((zFar + zNear) / (zFar - zNear));
00814         ret.m11 = -1;
00815
00816         ret.m12 = 0;
00817         ret.m13 = 0;
00818         ret.m14 = -T(2 * zFar * zNear / (zFar - zNear));
00819         ret.m15 = 0;
00820
00821         return ret;
00822     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::loadFrustum ( const GLdouble  left,
const GLdouble  right,
const GLdouble  bottom,
const GLdouble  top,
const GLdouble  zNear,
const GLdouble  zFar
) [inline]

Make this with an OpenGL frustum matrix.

Definition at line 826 of file GLMatrix.h.

00829     {
00830         m0 = T(2 * zNear / (right-left));
00831         m1 = 0;
00832         m2 = 0;
00833         m3 = 0;
00834
00835         m4 = 0;
00836         m5 = T(2 * zNear / (top-bottom));
00837         m6 = 0;
00838         m7 = 0;
00839
00840         m8 = T((right + left) / (right - left));
00841         m9 = T((top + bottom) / (top - bottom));
00842         m10 = -T((zFar + zNear) / (zFar - zNear));
00843         m11 = -1;
00844
00845         m12 = 0;
00846         m13 = 0;
00847         m14 = T(-2 * zFar * zNear / (zFar - zNear));
00848         m15 = 0;
00849
00850         return *this;
00851     }

template<typename T>
static GLMatrix mathglpp::GLMatrix< T >::glOrtho ( const GLdouble  left,
const GLdouble  right,
const GLdouble  bottom,
const GLdouble  top,
const GLdouble  zNear,
const GLdouble  zFar
) [inline, static]

OpenGL orthogonal matrix.

Definition at line 854 of file GLMatrix.h.

00857     {
00858         GLMatrix ret;
00859         ret.m0 = T(2 / (right - left));
00860         ret.m1 = 0;
00861         ret.m2 = 0;
00862         ret.m3 = 0;
00863
00864         ret.m4 = 0;
00865         ret.m5 = T(2 / (top - bottom));
00866         ret.m6 = 0;
00867         ret.m7 = 0;
00868
00869         ret.m8 = 0;
00870         ret.m9 = 0;
00871         ret.m10 = T(-2 / (zFar - zNear));
00872         ret.m11 = 0;
00873
00874         ret.m12 = -T((right + left) / (right - left));
00875         ret.m13 = -T((top + bottom) / (top - bottom));
00876         ret.m14 = -T((zFar + zNear) / (zFar - zNear));
00877         ret.m15 = 1;
00878
00879         return ret;
00880     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::loadOrtho ( const GLdouble  left,
const GLdouble  right,
const GLdouble  bottom,
const GLdouble  top,
const GLdouble  zNear,
const GLdouble  zFar
) [inline]

OpenGL orthogonal matrix.

Definition at line 883 of file GLMatrix.h.

00886     {
00887         m0 = T(2 / (right - left));
00888         m1 = 0;
00889         m2 = 0;
00890         m3 = 0;
00891
00892         m4 = 0;
00893         m5 = T(2 / (top - bottom));
00894         m6 = 0;
00895         m7 = 0;
00896
00897         m8 = 0;
00898         m9 = 0;
00899         m10 = -T(2 / (zFar - zNear));
00900         m11 = 0;
00901
00902         m12 = -T((right + left) / (right - left));
00903         m13 = -T((top + bottom) / (top - bottom));
00904         m14 = -T((zFar + zNear) / (zFar - zNear));
00905         m15 = 1;
00906
00907         return *this;
00908     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::loadView ( const T  fx,
const T  fy,
const T  fz,
const T  ux,
const T  uy,
const T  uz,
const T  sx,
const T  sy,
const T  sz
) [inline]

OpenGL View Matrix.

Definition at line 911 of file GLMatrix.h.

00914     {
00915         m0 = sx;
00916         m1 = ux;
00917         m2 = -fx;
00918         m3 = 0;
00919
00920         m4 = sy;
00921         m5 = uy;
00922         m6 = -fy;
00923         m7 = 0;
00924
00925         m8 = sz;
00926         m9 = uz;
00927         m10 = -fz;
00928         m11 = 0;
00929
00930         m12 = 0;
00931         m13 = 0;
00932         m14 = 0;
00933         m15 = 1;
00934
00935         return *this;
00936     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::loadView ( const T *const   f,
const T *const   u,
const T *const   s
) [inline]

OpenGL View Matrix.

Definition at line 939 of file GLMatrix.h.

00940     {
00941         m0 = s[0];
00942         m1 = u[0];
00943         m2 = -f[0];
00944         m3 = 0;
00945
00946         m4 = s[1];
00947         m5 = u[1];
00948         m6 = -f[1];
00949         m7 = 0;
00950
00951         m8 = s[2];
00952         m9 = u[2];
00953         m10 = -f[2];
00954         m11 = 0;
00955
00956         m12 = 0;
00957         m13 = 0;
00958         m14 = 0;
00959         m15 = 1;
00960
00961         return *this;
00962     }

template<typename T>
GLMatrix& mathglpp::GLMatrix< T >::loadView ( const GLVector3< T > &  front,
const GLVector3< T > &  up,
const GLVector3< T >  side
) [inline]

OpenGL View Matrix.

Definition at line 965 of file GLMatrix.h.

00966     {
00967         m0 = side.x;
00968         m1 = up.x;
00969         m2 = -front.x;
00970         m3 = 0;
00971
00972         m4 = side.y;
00973         m5 = up.y;
00974         m6 = -front.y;
00975         m7 = 0;
00976
00977         m8 = side.z;
00978         m9 = up.z;
00979         m10 = -front.z;
00980         m11 = 0;
00981
00982         m12 = 0;
00983         m13 = 0;
00984         m14 = 0;
00985         m15 = 1;
00986
00987         return *this;
00988     }

template<typename T>
const T mathglpp::GLMatrix< T >::cofactorm0 (  )  const [inline, protected]

Cofactor of m0.

Definition at line 1046 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::adjoint(), and mathglpp::GLMatrix< value_type >::det().

01046 { return cofactor_maker(m5,m10,m15, m6,m11,m13, m7,m9,m14); }

template<typename T>
const T mathglpp::GLMatrix< T >::cofactorm1 (  )  const [inline, protected]

Cofactor of m1.

Definition at line 1048 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::adjoint(), and mathglpp::GLMatrix< value_type >::det().

01048 { return cofactor_maker(m6,m11,m12, m7,m8,m14, m4,m10,m15); }

template<typename T>
const T mathglpp::GLMatrix< T >::cofactorm2 (  )  const [inline, protected]

Cofactor of m2.

Definition at line 1050 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::adjoint(), and mathglpp::GLMatrix< value_type >::det().

01050 { return cofactor_maker(m7,m8,m13, m4,m9,m15, m5,m11,m12); }

template<typename T>
const T mathglpp::GLMatrix< T >::cofactorm3 (  )  const [inline, protected]

Cofactor of m3.

Definition at line 1052 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::adjoint(), and mathglpp::GLMatrix< value_type >::det().

01052 { return cofactor_maker(m4,m9,m14, m5,m10,m12, m6,m8,m13); }

template<typename T>
const T mathglpp::GLMatrix< T >::cofactorm4 (  )  const [inline, protected]

Cofactor of m4.

Definition at line 1055 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::adjoint().

01055 { return cofactor_maker(m9,m14,m3, m10,m15,m1, m11,m13,m2); }

template<typename T>
const T mathglpp::GLMatrix< T >::cofactorm5 (  )  const [inline, protected]

Cofactor of m5.

Definition at line 1057 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::adjoint().

01057 { return cofactor_maker(m10,m15,m0, m11,m12,m2, m8,m14,m3); }

template<typename T>
const T mathglpp::GLMatrix< T >::cofactorm6 (  )  const [inline, protected]

Cofactor of m6.

Definition at line 1059 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::adjoint().

01059 { return cofactor_maker(m11,m12,m1, m8,m13,m3, m9,m15,m0); }

template<typename T>
const T mathglpp::GLMatrix< T >::cofactorm7 (  )  const [inline, protected]

Cofactor of m7.

Definition at line 1061 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::adjoint().

01061 { return cofactor_maker(m8,m13,m2, m9,m14,m0, m10,m12,m1); }

template<typename T>
const T mathglpp::GLMatrix< T >::cofactorm8 (  )  const [inline, protected]

Cofactor of m8.

Definition at line 1064 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::adjoint().

01064 { return cofactor_maker(m13,m2,m7, m14,m3,m5, m15,m1,m6); }

template<typename T>
const T mathglpp::GLMatrix< T >::cofactorm9 (  )  const [inline, protected]

Cofactor of m9.

Definition at line 1066 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::adjoint().

01066 { return cofactor_maker(m14,m13,m4, m15,m0,m6, m12,m2,m7); }

template<typename T>
const T mathglpp::GLMatrix< T >::cofactorm10 (  )  const [inline, protected]

Cofactor of m10.

Definition at line 1068 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::adjoint().

01068 { return cofactor_maker(m15,m0,m5, m12,m1,m7, m13,m3,m4); }

template<typename T>
const T mathglpp::GLMatrix< T >::cofactorm11 (  )  const [inline, protected]

Cofactor of m11.

Definition at line 1070 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::adjoint().

01070 { return cofactor_maker(m12,m1,m6, m13,m2,m4, m14,m0,m5); }

template<typename T>
const T mathglpp::GLMatrix< T >::cofactorm12 (  )  const [inline, protected]

Cofactor of m12.

Definition at line 1073 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::adjoint().

01073 { return cofactor_maker(m1,m6,m11, m2,m7,m9, m3,m5,m10); }

template<typename T>
const T mathglpp::GLMatrix< T >::cofactorm13 (  )  const [inline, protected]

Cofactor of m13.

Definition at line 1075 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::adjoint().

01075 { return cofactor_maker(m2,m7,m8, m3,m4,m10, m10,m6,m11); }

template<typename T>
const T mathglpp::GLMatrix< T >::cofactorm14 (  )  const [inline, protected]

Cofactor of m14.

Definition at line 1077 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::adjoint().

01077 { return cofactor_maker(m3,m4,m9, m0,m5,m11, m1,m7,m8); }

template<typename T>
const T mathglpp::GLMatrix< T >::cofactorm15 (  )  const [inline, protected]

Cofactor of m15.

Definition at line 1079 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::adjoint().

01079 { return cofactor_maker(m0,m5,m10, m1,m6,m8, m2,m4,m9); }

Member Data Documentation

template<typename T>
T mathglpp::GLMatrix< T >::m[16]

Straight column major vector layout.

Definition at line 1087 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::dot2(), mathglpp::GLMatrix< value_type >::dot3(), mathglpp::GLMatrix< value_type >::dot4(), mathglpp::GLMatrix< value_type >::glGet(), mathglpp::GLMatrix< value_type >::glLoadMatrix(), mathglpp::GLMatrix< value_type >::GLMatrix(), mathglpp::GLMatrix< value_type >::glMultMatrix(), mathglpp::GLMatrix< T >::glVertex3v(), mathglpp::GLMatrix< T >::glVertex4v(), mathglpp::GLMatrix< value_type >::operator *(), mathglpp::GLMatrix< value_type >::operator *=(), mathglpp::GLMatrix< value_type >::operator const value_type *(), mathglpp::GLMatrix< value_type >::operator value_type *(), mathglpp::GLMatrix< value_type >::operator+=(), mathglpp::GLMatrix< value_type >::operator-=(), mathglpp::GLMatrix< value_type >::operator/=(), mathglpp::GLMatrix< value_type >::operator=(), mathglpp::GLMatrix< value_type >::operator==(), mathglpp::GLMatrix< value_type >::operator[](), mathglpp::GLMatrix< value_type >::vdot2(), mathglpp::GLMatrix< value_type >::vdot3(), and mathglpp::GLMatrix< value_type >::vdot4().

template<typename T>
T mathglpp::GLMatrix< T >::m_c_r[4][4]

Column-Row matrix layout.

Definition at line 1089 of file GLMatrix.h.

template<typename T>
T mathglpp::GLMatrix< T >::m0

Fast individual element access.

Definition at line 1093 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::applyScale(), mathglpp::GLMatrix< value_type >::applyTranslate(), mathglpp::GLMatrix< value_type >::cofactorm10(), mathglpp::GLMatrix< value_type >::cofactorm11(), mathglpp::GLMatrix< value_type >::cofactorm14(), mathglpp::GLMatrix< value_type >::cofactorm15(), mathglpp::GLMatrix< value_type >::cofactorm5(), mathglpp::GLMatrix< value_type >::cofactorm6(), mathglpp::GLMatrix< value_type >::cofactorm7(), mathglpp::GLMatrix< value_type >::cofactorm9(), mathglpp::GLMatrix< value_type >::det(), mathglpp::GLMatrix< value_type >::GLMatrix(), mathglpp::GLMatrix< value_type >::glOrtho(), mathglpp::GLMatrix< T >::glRotate(), mathglpp::GLMatrix< value_type >::glScale(), mathglpp::GLMatrix< T >::glTranslate(), mathglpp::GLMatrix< T >::glVertex3v(), mathglpp::GLMatrix< value_type >::identity(), mathglpp::GLMatrix< value_type >::inverse(), mathglpp::GLMatrix< value_type >::loadFrustum(), mathglpp::GLMatrix< value_type >::loadIdentity(), mathglpp::GLMatrix< value_type >::loadOrtho(), mathglpp::GLMatrix< value_type >::loadRotate(), mathglpp::GLMatrix< value_type >::loadRotateX(), mathglpp::GLMatrix< value_type >::loadRotateY(), mathglpp::GLMatrix< value_type >::loadRotateZ(), mathglpp::GLMatrix< value_type >::loadScale(), mathglpp::GLMatrix< value_type >::loadTranslate(), mathglpp::GLMatrix< value_type >::loadView(), mathglpp::GLMatrix< value_type >::loadZero(), mathglpp::GLMatrix< value_type >::mult3by3(), mathglpp::GLMatrix< value_type >::operator *(), and mathglpp::GLMatrix< value_type >::operator *=().

template<typename T>
T mathglpp::GLMatrix< T >::_a

Fast individual element access.

Definition at line 1098 of file GLMatrix.h.

Referenced by mathglpp::GLMatrix< value_type >::eigenValues().

The documentation for this class was generated from the following file:
Generated on Wed Oct 3 12:50:52 2007 for MathGL++ by  doxygen 1.5.2
